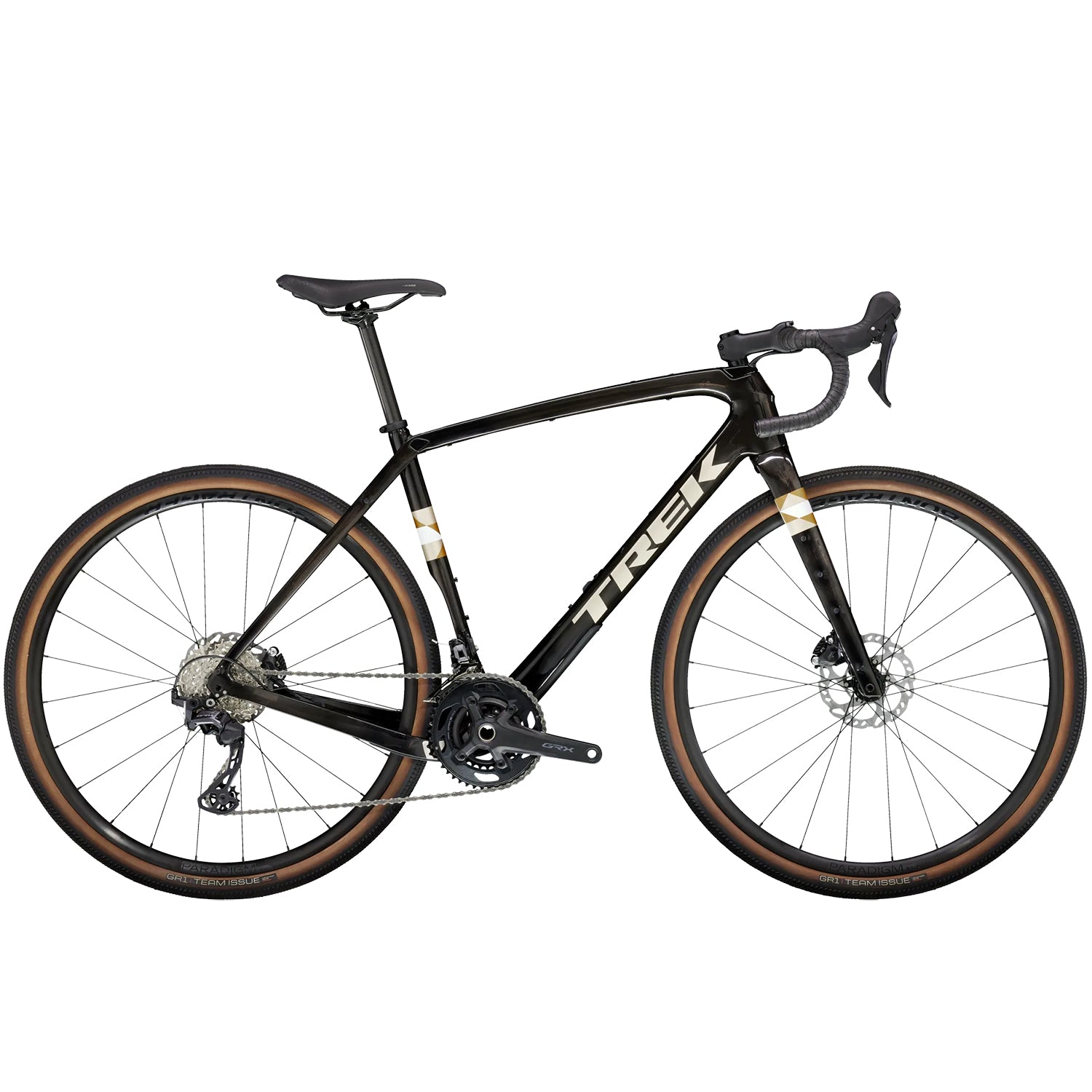

Trek Checkpoint SL 5 Carbon Gravel Road Bike 2024

  • OCLV Carbon frame with downtube storage
  • Shimano GRX 12-Speed drive
  • Shimano RX410 Hydraulic disc brakes
  • Tubeless Ready wheels & tyres
  • Multiple mounts for plenty of accessory options

ON SALE

£2,599.99 £3,500.00

Check your eligibility

Fast check - won't affect your credit rating.

Please get in touch if we don't have what you need. There's sometimes a chance we can get hold of specific items.

Pre-order

Delivery Dates TBC

In stock and ready to ship

Buy now, pay later



Trek Checkpoint SL 5 Carbon Gravel Road Bike 2024

The Checkpoint SL 5 is a carbon gravel bike made for epic adventures. It's built with lightweight OCLV Carbon, a 2x12 Shimano GRX drivetrain, terrain-smoothing damped IsoSpeed, nimble yet stable progressive geometry, internal storage and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.

It's right for you if...

Chamois or cut-off shorts, bikepacking trip or brutal day of gravel racing – you're going to ride far and have a great time. You want a bike that's both fast and comfortable, and you want endless options for loading up gear and heading to gravel races and on everyday adventures.

The tech you get

A 500 Series OCLV Carbon frame with damped rear IsoSpeed and carbon armour, progressive geometry that's stable at speed and efficient when you're grinding up a climb, internal frame storage, hidden cables that won't interfere with bags and integrated frame, fork, rack and mudguard mounts. Plus, a carbon fork, a 2x12 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel and Paradigm SL wheels. You can even run a dropper post to get low on long descents.

Why you'll love it

  • It's equipped with rugged, gravel-focused 2x12 Shimano GRX drivetrain that's made for tackling the roads less travelled
  • Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions
  • Fork mounts, frame mounts, and rack and mudguard mounts allow you to carry all the gear you need for day trips and bikepacking adventures
  • A sleek internal storage compartment gives you a versatile spot to stow tools and gear
  • The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around

The final word

Light, fast, comfortable. The Checkpoint SL 5 gives you the unmatched ride quality of an OCLV Carbon frame with IsoSpeed and gravel-specific geometry, plus internal storage and a drivetrain built for rough terrain.

Frame500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
Rear shockNone
ForkTrek Checkpoint, full carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru-axle
Headset
ShiftersShimano GRX RX610, 12-speed
Front derailleurShimano GRX RX820, braze-on, down swing
Rear derailleurShimano GRX RX820, 36T max cog
ChainsetShimano GRX RX610, 46/30
Bottom bracketPraxis, T47 threaded, internal bearing
ChainShimano SLX M7100, 12-speed
CassetteShimano 105 7100, 11-36, 12-speed
WheelsetBontrager Paradigm SL, Tubeless Ready, 21 mm width
HubsBontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Spokes
TyresBontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
BrakesShimano RX410 hydraulic disc, flat mount
HandlebarsBontrager Elite Gravel
GripsBontrager Supertack Perf tape
StemBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
SaddleBontrager Verse Comp, steel rails
SeatpostBontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
PedalsNone
