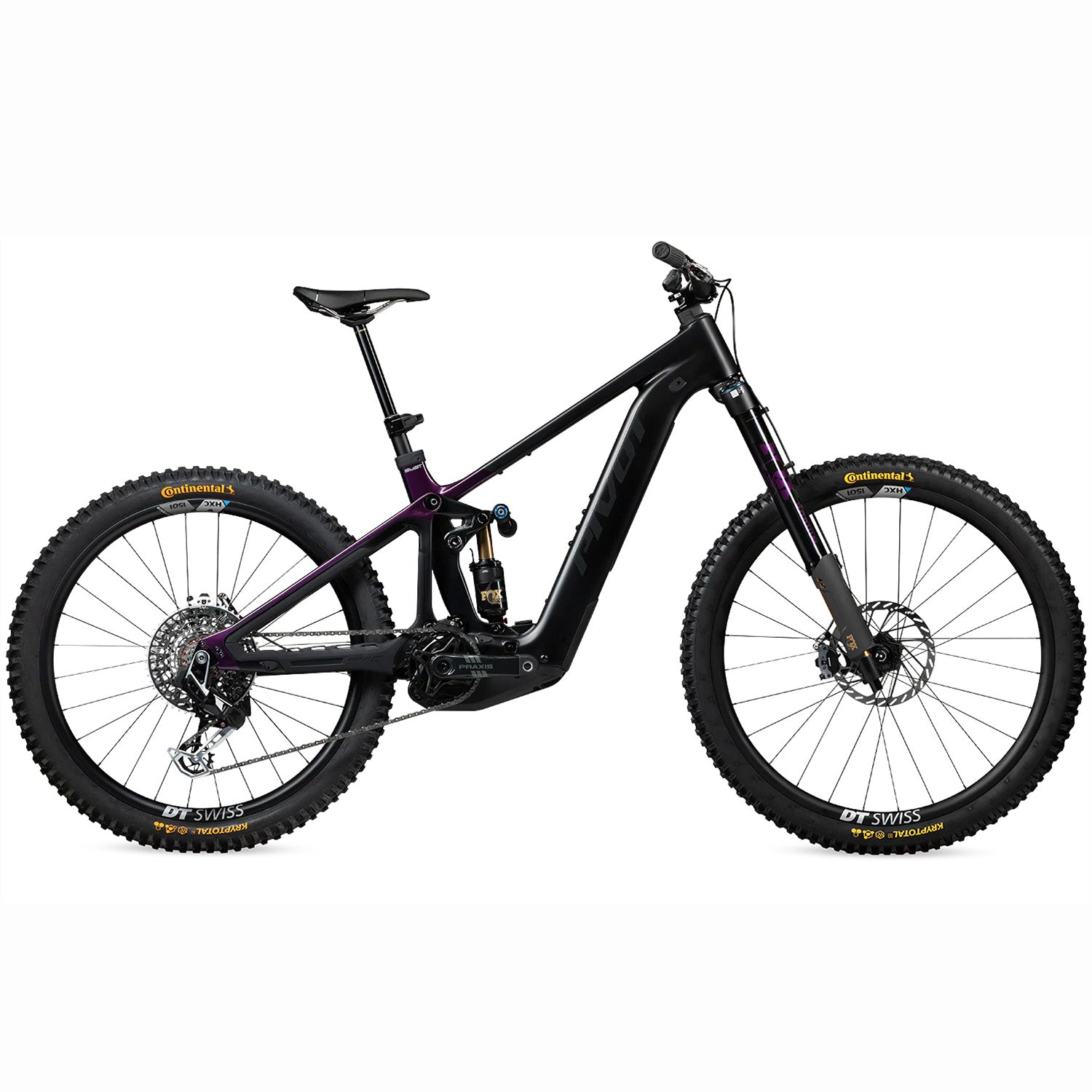

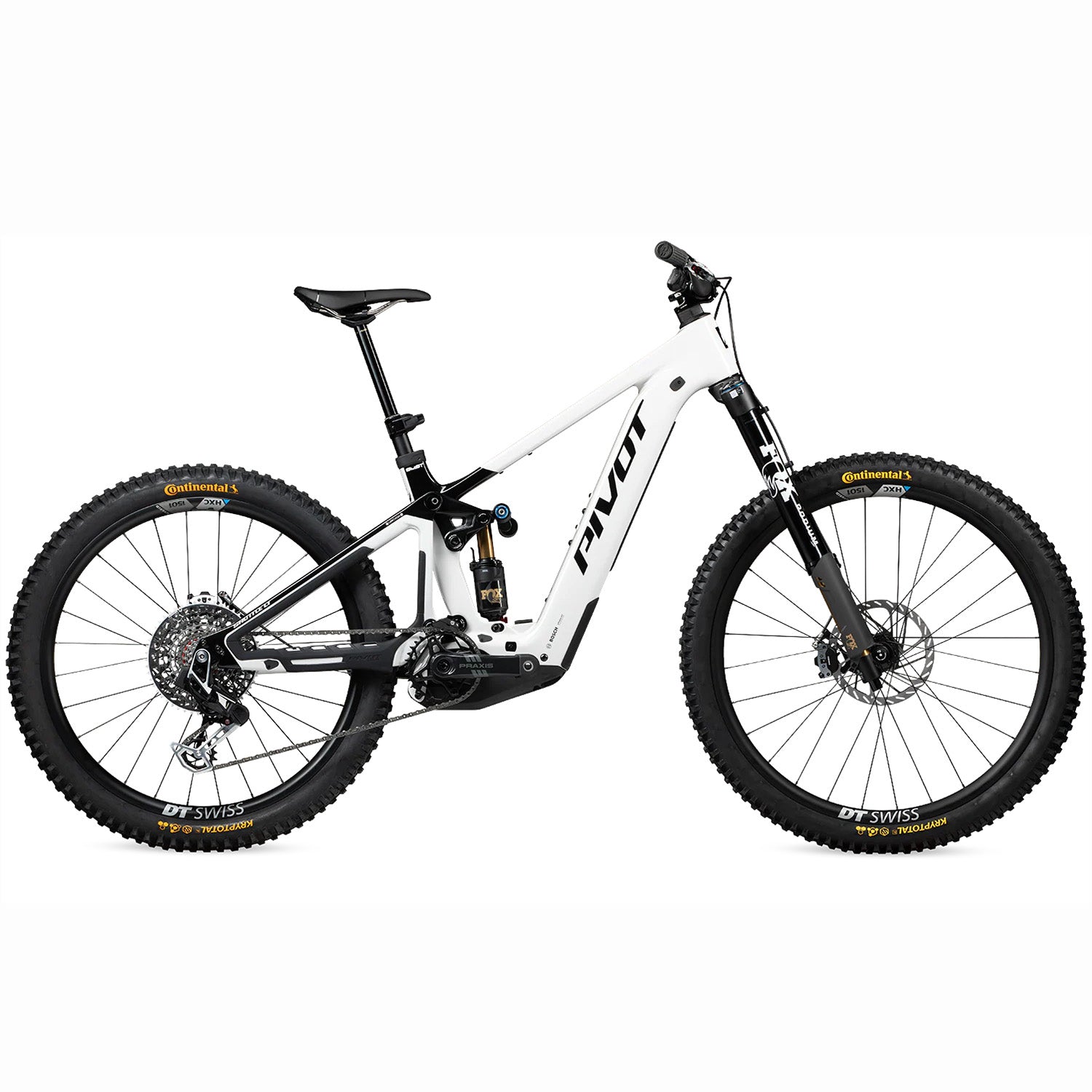

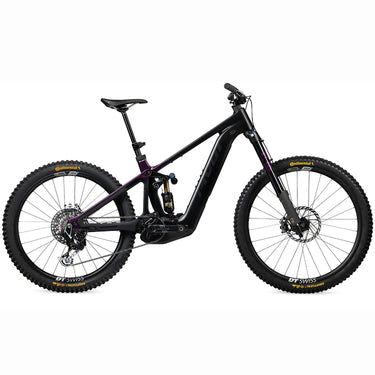

Pivot Shuttle LT Team XX Eagle Full Suspension Electric Mountain Bike 2027

Pivot Shuttle LT Ride Eagle 70/90 Full Suspension Electric Mountain Bike 2027

This is Enduro, Electrified

The Shuttle LT is enduro – unleashed, electrified and honed to perfection. It channels chaos and control through a long-travel chassis shaped by enduro’s cutting edge of design. It descends with precision that’s more surgical than savage, cutting through terrain with quiet authority and razor-sharp focus. This is enduro electrified, designed for disorder, engineered for the unruly.

Wickedly Capable

The Shuttle LT doesn’t just tame terrain, it thrives on it. A low-slung center of gravity locks you into the trail, keeping the bike planted when speed and chaos collide, while staying playful enough to go airborne at a moment’s notice. At its heart, 162 mm of dw-link rear travel paired with 170 mm up front creates a suspension platform that channels raw power into efficiency on the climbs and total control on the descents. Complementing that foundation, the Fox Podium inverted fork (Pro & Team Builds) rides with the authority of a downhill setup in a single-crown package, giving you the stiffness, precision and confidence to keep charging no matter how wild it gets.

Dial It In

Customization runs deep — with the new Shuttle LT, Pivot introduces the world’s first independently adjustable seat tube angle. Our patent-pending Slacky McSteepTube™ design lets you fine-tune your bike for the climbs and descents you live for, with a steep 78° for big alpine ascents or 76.5° for punchy up-and-down terrain like Moab. Pivot’s patented Swinger dropout system provides 8mm of chainstay adjustment for snappy handling or high-speed stability. A geo flip-chip lets you dail your geomety and wheel setup, while a suspension flip-chip adjusts the shock curve from lively and progressive to deep and composed. It’s personalization that goes beyond numbers, making the Shuttle LT an extension of you and your terrain.

Watt-Fed Fury

At the heart of the Shuttle LT Pro and Team builds is Bosch’s race-tuned CX-R drive unit, a lighter, more aggressive motor with a titanium spindle and ceramic bearings, built for pure speed and sharpened response. It pushes out 100Nm of torque and 750 watts of peak power, ready to fly up the most brutal climbs with eye-watering speed and exceptional traction. All backed by an easily removeable 800Wh battery, delivering the range to match the motor’s ferocity. From all-day epics to back-to-back race stages, a removable battery and range extender capability keeps the Shuttle LT going long after others have tapped out.

Slacky McSteepTube™

Pivot's patent-pending system allows independent adjustment of the seat tube angle, a world's first. Fine-tune between: 78° for dominating long, sustained climbs and 76.5° for mixed terrain and constant ups/down. Lets riders tailor the Shuttle LT’s climbing position to their terrain and style.

Removable Battery

The Shuttle LT’s 800Wh battery isn’t just big, it’s fully removable. Riders can swap between batteries in seconds, charge off the bike and travel with ease, all without compromising frame stiffness or handling. It’s the freedom to go further, faster, with less downtime. The Shuttle LT is also compatible with Bosch’s 600Wh battery for riders seeking a lighter package, for shorter rides.

Floating Battery Technology

Rather than fixing the battery rigidly to the frame, Pivot uses two independent nylon-composite mounts that allow it to subtly rotate as the carbon frame flexes under load. This floating interface lets the frame move naturally through impacts and cornering, preserving compliance, durability and the ride feel Pivot is known for.

Suspension Progressivity Flip Chip

Adjustable progression via lower shock mount flip chip. Allows riders the ability to change the progressivity of the suspension curve. 0 - 100% of travel: 36.0% in progressive, 32.7% in linear. 30% (sag) to 90% of travel: 19.1% in progressive, 16.8% in linear

Adjustable Chainstay Length

Using their Swinger Dropout patent, Pivot developed a chainstay length adjustment that is fully compatible with UDH and SRAM Transmission in either setting. Riders can choose between the short or long position, providing 8mm of rear-center adjustment while also tuning rear travel, with 162mm in the short setting and 165mm in the long.

The Latest Bosch Performance Drive System

Powered by the latest Bosch Performance drive system, the Shuttle LT features the Bosch Performance CX-R motor for class-leading performance. An 800Wh battery delivers confident range, with the option to add the Bosch PowerMore 250 range extender. The compact, bottle-shaped PowerMore adds 250Wh, weighs just 3.3 lbs (1.6 kg), and mounts easily to extend your ride without compromise.

Pivot X Bosch Flow App

The Bosch x Pivot Cycles Flow app seamlessly connects riders to Bosch-powered e-bikes, offering access to all assist modes, including Turbo, eMTB-shortcrank, Sport, and the new eMTB+ mode. It also provides maintenance recommendations, a Pivot/Bosch dealer locator and real-time battery status with estimated range in one intuitive platform.
