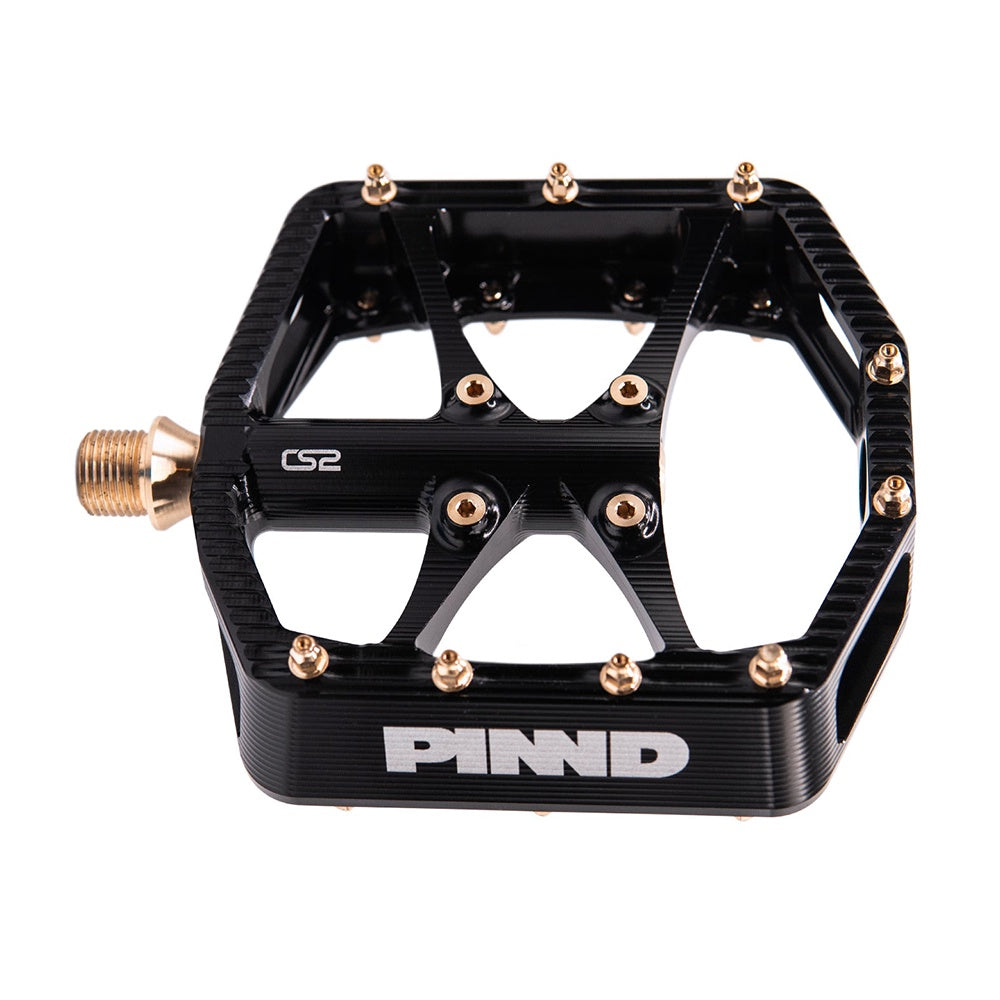

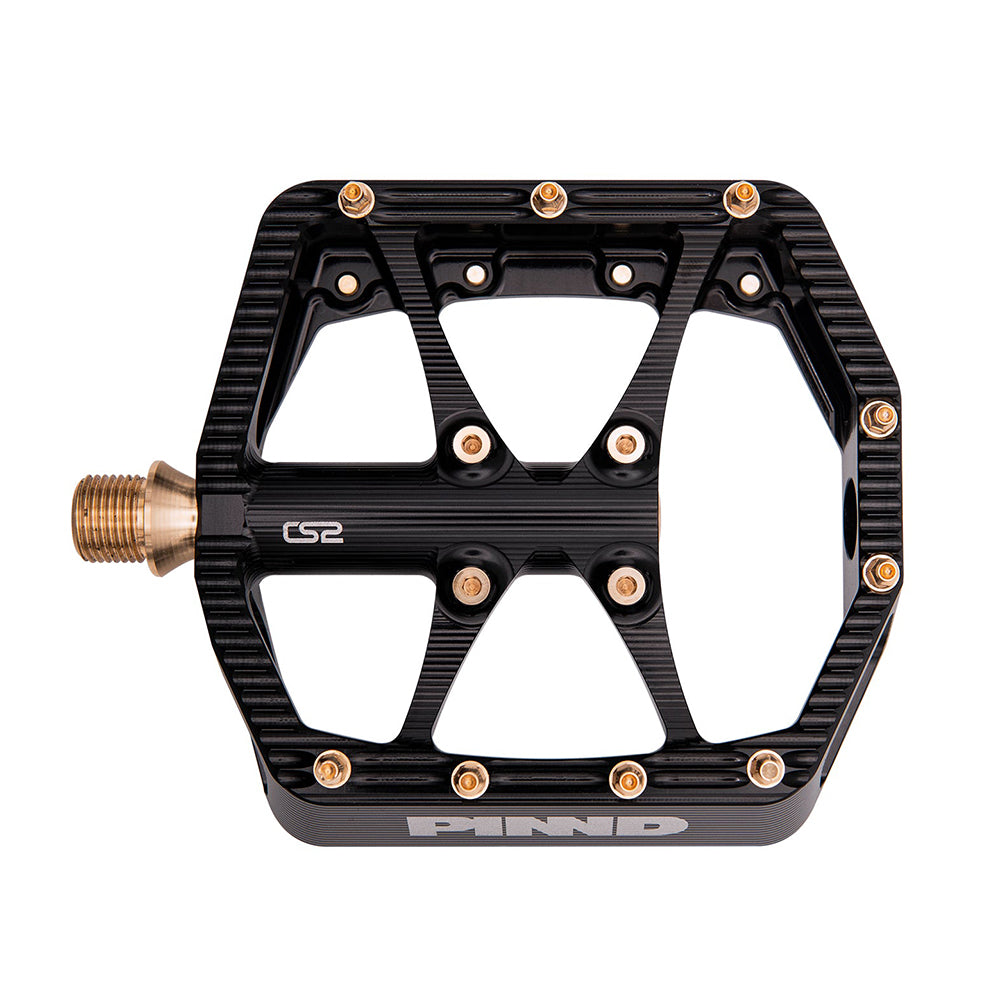

PINND CS2+ Pedals
PINND CS2+ Pedals
Designed for downhill, enduro and trail mountain bike riding and offering a large contact platform with a 9mm concave profile and fully adjustable pin set. Pedals are shipped with 18 pins installed allowing you to customise with an additional 8 provided. The 7075 T6 aluminium body has been CNC machined on the PINND 5-axis tooling allowing them to fully optimise the pedal for a high traction connection between pedal and shoe. By using beryllium copper for the spindles and pins, PINND have achieved what they think may be the strongest pedal available.
Internally the pedal features oil sealed bearings to give exceptional all weather performance and long service intervals. The design incorporates an oil seal which keeps oil in, and water and dirt out. With use of a needle bearing instead of plastic bush, the CS2+ won't exhibit the axial play common to most designs. When this play develops the seal becomes compromised and unable to seal resulting in water and dirt ingress and lubrication egress - PINND solution is 2 fold. Quality oil seal and quality needle bearing.
Specification:
| Pins | 26 Per Pedal - Beryllium Copper |
| Body Material | 7075 T6 Anodised Aluminium |
| Spindle | Beryllium Copper |
| Inner Bearing | HK1015 Needle Bearing |
| Outer Bearing | 2 x Cartridge Bearings |
| Max Rider Weight | No limit |
| Foot Print | 110 x 105mm |
| Warranty | 5 Years Limited Warranty - half price crash replacement |
| Weight (pair) | 480g with beryllium copper pins. |
