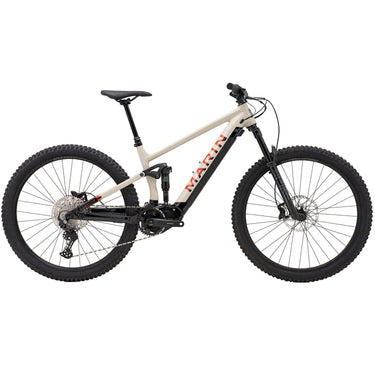

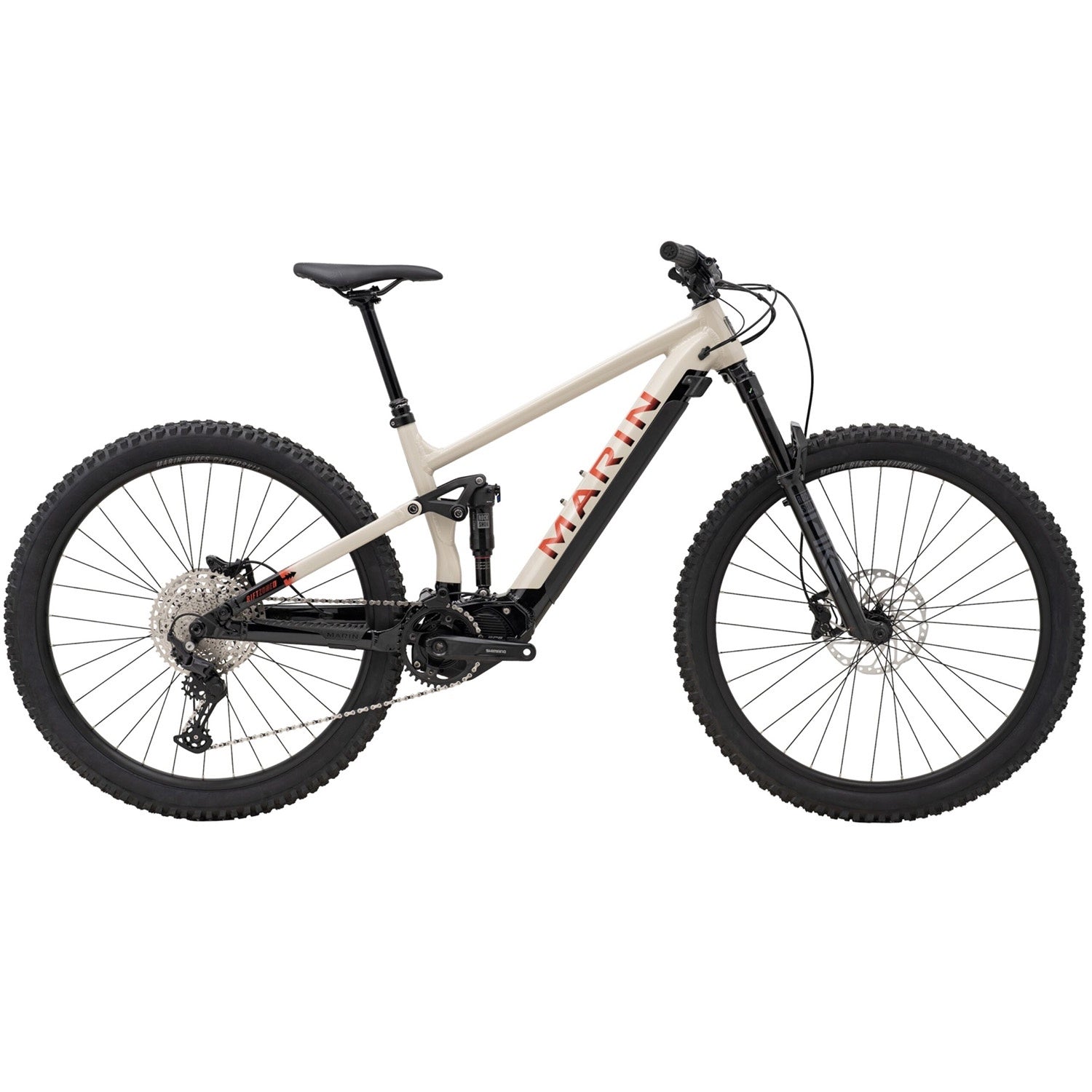

Marin Rift Zone E1 Full Suspension Electric Mountain Bike
- Shimano Steps EP6 motor
- Shimano 630Wh battery
- RockShox Pike Base 140mm travel fork
- RockShox Deluxe Select+ shock
- TranzX dropper post
- Tubeless ready wheels & tyres
Marin Rift Zone E1 Full Suspension Electric Mountain Bike
£4,399.00
/
Pickup currently unavailable at Sprockets Cycles
Marin Rift Zone E1 Full Suspension Electric Mountain Bike
MOUNTAIN BIKING WITH A BOOST
THE JACK-OF-ALL-TRADES MTB, ELECTRIFIED
MAXIMIZING FUN
Marin's mid-price, mid-tier Rifty E, the Marin Rift Zone E1 is beautifully balancing performance and value. RockShox handles the suspension, Shimano Deore brings a tough, reliable 11-speed drivetrain and Shimano’s brand-new STEPS EP6 drive unit powers you up, along and down. A 630WH battery is supplied as standard for maximum range and Marin have included CushCore tire inserts and Marin tubeless sealant straight out of the box.
Key upgrades from Rift Zone E:
- 630Wh Battery
- RockShox Pike/Deluxe Select+ Suspension
- Shimano Deore 11-speed Drivetrain w/11-51t Cassette
- CushCore tire inserts & Marin tire sealant
SERIES 4 ALUMINUM FRAME
Rift Zone E models are built upon Marin's Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.
MULTITRAC SUSPENSION
The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.
SHIMANO STEPS
Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor down low to help ensure that the Rift Zone E performs like the analog version, but with a 250W boost. Three levels of power give riders options to balance electric power, speed and range. Electric assist up to 20mph in the US, 25km/h in Europe.
Please note spec can change at anytime at the manufacturer's discretion
We aim to provide efficient delivery on all packages to mainland UK addresses. There are some areas where we will need to charge slightly more due to postage costs such as Highlands & Islands, Southern Ireland & Isle of Man.
Delivery is charged at £5.95 for standard delivery to UK mainland (see below for exceptions). Next working day delivery available for £6.95 if order before 1pm. Bikes are subject to £10.00 carriage charge. Exceptions can be found below. E-Bikes are subject to £30.00 carriage charge due to higher weight and value involved for insurance purposes.
Free delivery is available for orders over £75 and is a 2 working day service.
Orders placed before 12pm Monday to Thursday will be shipped the same day for next day delivery. Orders placed after 12pm Thursday and onwards will be shipped on Monday.
DUE TO THE CURRENT HIGH DEMAND, DELIVERY TIME FOR BIKES IS 3-5 DAYS. ALL PARTS AND ACCESSORIES ARE STILL 1-2 DAYS.
We use DPD for all our shipments:
DPD offer an excellent delivery service, with full tracking information and an hour time slot given on the day of delivery. You can also change the destination of your parcel, including local drop off points.
*Saturday delivery can be arranged at extra cost, please call for details.
SHIPPING EXCEPTIONS & SURCHARGES
Unfortunately due to the policies of our chosen shipping companies we regret that we will have to apply a separate charge to selected postcodes in the UK for some of our packages. If we need to apply this charge we will contact you after your order has been placed and work out the extra shipping charge. We do ship outwith the UK, please contact us for prices and options.
NORTHERN IRELAND POSTCODE SHIPPING EXCEPTIONS
Postcodes in Northern Ireland will carry a further charge for shipping, please contact for more details and prices.
ABERDEENSHIRE POSTCODE SHIPPING EXCEPTIONS
Postcodes in Aberdeenshire carry a further charge for large item shipping.
OUTER HEBRIDES POSTCODE SHIPPING EXCEPTIONS
Postcodes in the Outer Hebrides will carry a further charge for large item shipping, please contact for more details and prices.
INVERNESSHIRE POSTCODE SHIPPING EXCEPTIONS
Postcodes in Invernesshire carry a further charge for large item shipping.
KIRKWALL AREA POSTCODE SHIPPING EXCEPTIONS
Postcodes in the Kirkwall area carry a further charge for large item shipping shipping.
PAISLEY (WESTERN ISLES) POSTCODE SHIPPING EXCEPTIONS
Postcodes ranging from PA20 - PA80 in the Paisley & Western Isles will carry a further charge for large item shipping, please contact for more details and prices.
SHETLAND ISLES AREA SHIPPING EXCEPTIONS
Postcode within the Shetland Isles will carry a further charge for large item shipping, please contact for more details and prices.
We are confident that you will be very happy with the products you purchase from us but if you do change your mind we offer a 14 day money back guarantee on all online purchases except in the one circumstance listed below*. This period begins the day your order is delivered and ends 14 days from the day you receive your order and applies only to the conditions below.
If you wish to cancel an order before it has been dispatched you should phone or e-mail us as soon as possible. We can be contacted on 01563 526800 or via e-mail to info@sprocketscycles.com.
If you wish to return an item that has already been received, please call or e-mail where a member of our staff will be happy to advise you and guide you through any item of the returns process.
You should post your return items along with a cover letter to:
Sprockets Cycles,
Ayr Rd,
Kilmarnock,
KA1 5LF
RETURNING ACCESSORIES
The goods must be returned within 14 days from the day they are received/signed for.
Goods that are unsuitable, ordered by mistake or size errors must be returned at your cost in their original condition along with all packaging intact & paperwork intact and in a re-sellable condition, in these cases postage costs will not be refunded. If a replacement size is needed by yourself there will be an additional £3.95 delivery charge. If returning goods within the 14 day policy, you are under a duty to keep them in your possession and to take reasonable care of them until they are returned.
You should retain proof of postage until we inform you that the returned items have been received safely by us. We will not take responsibility for lost mail unless a signature has been attained for the item at Sprockets Cycles.
DAMAGED GOODS
If your goods are damaged in transit, we need to be notified of the damages within 24 hours of delivery to set up a claim with our courier company.
Items that are damaged or delivered in error are subject to the same basic conditions & expectations, however, should any claim for the above be valid, we will promptly refund any postage costs.
Please ensure you send a legible cover note including your receipt & contact details with all returns. This will provide clarity on the reason for return of the item & speed up the returns process.
*Unfortunately, exchanges or refunds are not allowed if the Goods have been specially made to order, personalized or altered to fit. These items do however come with their applicable warranty periods.
| Frame | All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor |
|---|---|
| Rear shock | RockShox Deluxe Select+, Compreson and Rebound Adjustment, 210x50, 25xM8 Lower and Upper Mount |
| Fork | RockShock Pike Base 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset |
| Headset | FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Shifters | Shimano Deore, 11-Speed |
| Front derailleur | |
| Rear derailleur | Shimano Deore, Direct Attachment, 11-Speed, SGS |
| Chainset | Aluminum, 160mm Length, 38t Chainring |
| Bottom bracket | |
| Chain | KMC X-10E, Silver |
| Cassette | SunRace 11-Speed, 11-51T |
| Wheelset | Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| Hubs | Shimano MT-410B, 110x15mm, Centerlock Disc, 32H Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Tyres | Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing |
| Brakes | TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Grips | Marin Grizzly Lock On |
| Stem | Marin 3D Forged Alloy, 35mm |
| Saddle | Marin eMTB Saddle |
| Seatpost | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
| Pedals | Marin MTB Plastic |
| Motor | Shimano Steps EP6 Drive Unit, 250W, 85Nm |
|---|---|
| Battery | Shimano BT-EN806, Internal 630Wh |
| Display | Shimano SC-E600 |
| Switch | Shimano SW-EN600L Left Hand Switch for Assist Mode Change |
| Extras | Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, CushCore Pro Set 29" with CushCore Valve Stems, Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap |
