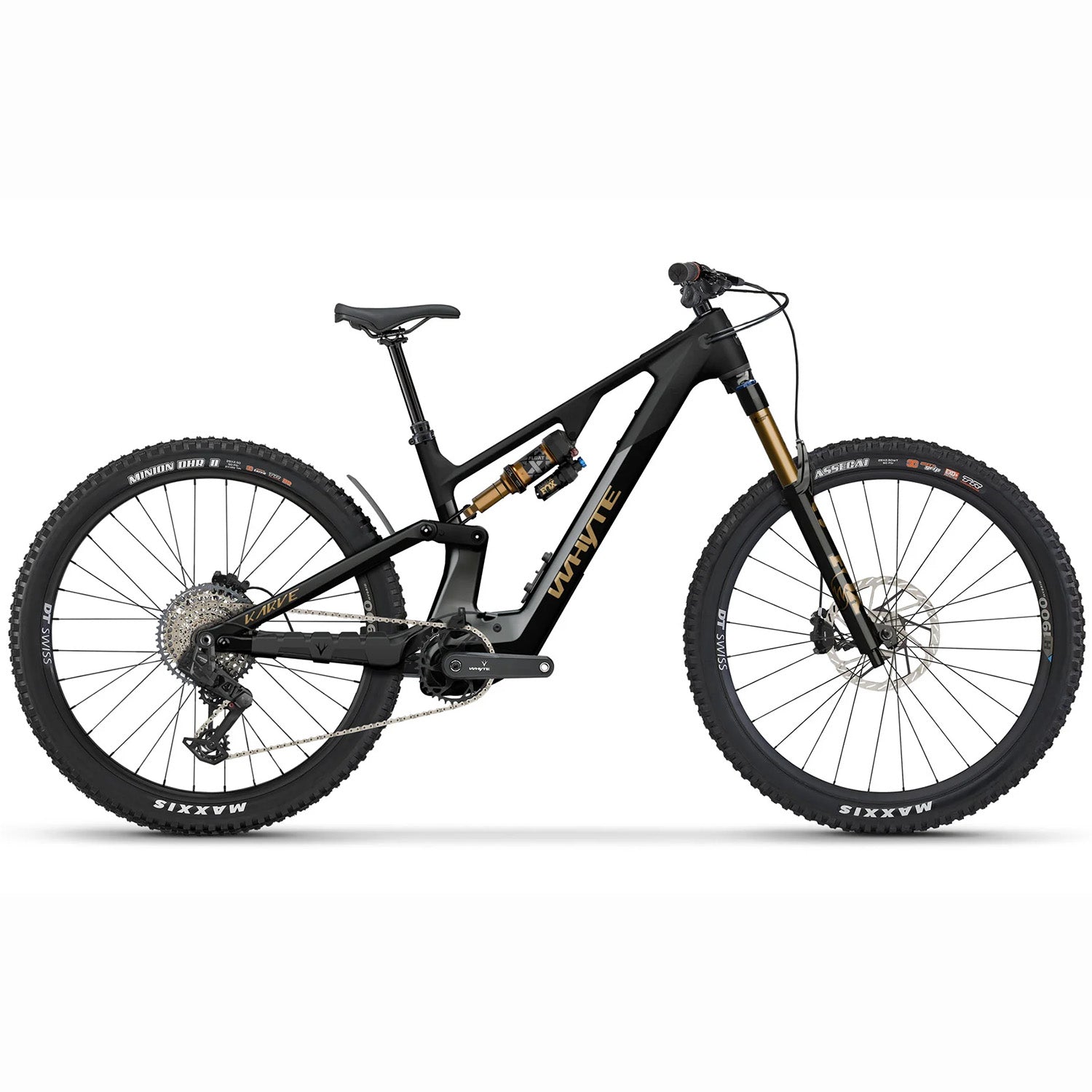

Whyte Karve RSX Full Suspension Electric Mountain Bike 2027
- Avinox M2S motor
- Avinox 800Wh battery
- SRAM Eagle T-Type AXS 12-Speed drive
- Fox Float 36 Factory 160mm travel fork
- Fox Float X Factory DPS shock
- SRAM Maven disc brakes
- TranzX dropper post
Whyte Karve RSX Full Suspension Electric Mountain Bike 2027
£7,799.00
/
Pickup available at Sprockets Cycles
Usually ready in 24 hours
Whyte Karve RSX Full Suspension Electric Mountain Bike 2027
Exhilaration everywhere
A thrilling 160mm full-carbon eMTB, engineered to be ridden hard, fast and without compromise. Combining proportional geometry with size-specific tuning Karve RSX delivers perfectly balanced handling for every rider. Confidence-inspiring and relentlessly capable, it’s built for those who demand more from every trail. Wherever you point it – steep descents, technical climbs or demanding back-country terrain – it delivers the poise, power and control to hold its line when it matters most. Precise handling, powerful support and an assured, planted feel let you press on, commit fully and carry speed where others hold back. Designed, developed and proven in Britain’s hard country — where riding is never easy – it reflects a simple principle: when conditions are toughest, design has to be right. The result is a bike that’s resilient, adaptable and built to perform, ride after ride.
Highlights
- 160mm front + 160mm rear of proven Quad-Link 4 suspension, with carefully custom-tuned rear shocks
- Uni-directional full carbon fibre frame with geometry adjustment is light and reassuringly strong + factory fitted with RideWrap frame protection
- Avinox M2S full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost) + 12A fast charger
- SRAM AXS Eagle 1x12 transmission + SRAM Maven Silver four-piston hydraulic brakes
- Avinox DP100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips
- 800Wh internal battery so you can ride further
- DT Swiss Hybrid H1900 29in trail-smoothing wheels front and rear + MX ready
Ideal for... Enthusiast riders who want a light, mid-travel full-power enduro-capable eMTB that delivers the very best handling and performance possible for maximum thrills – everywhere.
Charge time (800Wh): 80% in 1hr 45mins approx. from empty, and to 100% in 2hrs 23mins approx. with 12A fast charger.
We aim to provide efficient delivery on all packages to mainland UK addresses. There are some areas where we will need to charge slightly more due to postage costs such as Highlands & Islands, Southern Ireland & Isle of Man.
Delivery is charged at £5.95 for standard delivery to UK mainland (see below for exceptions). Next working day delivery available for £6.95 if order before 1pm. Bikes are subject to £10.00 carriage charge. Exceptions can be found below. E-Bikes are subject to £30.00 carriage charge due to higher weight and value involved for insurance purposes.
Free delivery is available for orders over £75 and is a 2 working day service.
Orders placed before 12pm Monday to Thursday will be shipped the same day for next day delivery. Orders placed after 12pm Thursday and onwards will be shipped on Monday.
DUE TO THE CURRENT HIGH DEMAND, DELIVERY TIME FOR BIKES IS 3-5 DAYS. ALL PARTS AND ACCESSORIES ARE STILL 1-2 DAYS.
We use DPD for all our shipments:
DPD offer an excellent delivery service, with full tracking information and an hour time slot given on the day of delivery. You can also change the destination of your parcel, including local drop off points.
*Saturday delivery can be arranged at extra cost, please call for details.
SHIPPING EXCEPTIONS & SURCHARGES
Unfortunately due to the policies of our chosen shipping companies we regret that we will have to apply a separate charge to selected postcodes in the UK for some of our packages. If we need to apply this charge we will contact you after your order has been placed and work out the extra shipping charge. We do ship outwith the UK, please contact us for prices and options.
NORTHERN IRELAND POSTCODE SHIPPING EXCEPTIONS
Postcodes in Northern Ireland will carry a further charge for shipping, please contact for more details and prices.
ABERDEENSHIRE POSTCODE SHIPPING EXCEPTIONS
Postcodes in Aberdeenshire carry a further charge for large item shipping.
OUTER HEBRIDES POSTCODE SHIPPING EXCEPTIONS
Postcodes in the Outer Hebrides will carry a further charge for large item shipping, please contact for more details and prices.
INVERNESSHIRE POSTCODE SHIPPING EXCEPTIONS
Postcodes in Invernesshire carry a further charge for large item shipping.
KIRKWALL AREA POSTCODE SHIPPING EXCEPTIONS
Postcodes in the Kirkwall area carry a further charge for large item shipping shipping.
PAISLEY (WESTERN ISLES) POSTCODE SHIPPING EXCEPTIONS
Postcodes ranging from PA20 - PA80 in the Paisley & Western Isles will carry a further charge for large item shipping, please contact for more details and prices.
SHETLAND ISLES AREA SHIPPING EXCEPTIONS
Postcode within the Shetland Isles will carry a further charge for large item shipping, please contact for more details and prices.
We are confident that you will be very happy with the products you purchase from us but if you do change your mind we offer a 14 day money back guarantee on all online purchases except in the one circumstance listed below*. This period begins the day your order is delivered and ends 14 days from the day you receive your order and applies only to the conditions below.
If you wish to cancel an order before it has been dispatched you should phone or e-mail us as soon as possible. We can be contacted on 01563 526800 or via e-mail to info@sprocketscycles.com.
If you wish to return an item that has already been received, please call or e-mail where a member of our staff will be happy to advise you and guide you through any item of the returns process.
You should post your return items along with a cover letter to:
Sprockets Cycles,
Ayr Rd,
Kilmarnock,
KA1 5LF
RETURNING ACCESSORIES
The goods must be returned within 14 days from the day they are received/signed for.
Goods that are unsuitable, ordered by mistake or size errors must be returned at your cost in their original condition along with all packaging intact & paperwork intact and in a re-sellable condition, in these cases postage costs will not be refunded. If a replacement size is needed by yourself there will be an additional £3.95 delivery charge. If returning goods within the 14 day policy, you are under a duty to keep them in your possession and to take reasonable care of them until they are returned.
You should retain proof of postage until we inform you that the returned items have been received safely by us. We will not take responsibility for lost mail unless a signature has been attained for the item at Sprockets Cycles.
DAMAGED GOODS
If your goods are damaged in transit, we need to be notified of the damages within 24 hours of delivery to set up a claim with our courier company.
Items that are damaged or delivered in error are subject to the same basic conditions & expectations, however, should any claim for the above be valid, we will promptly refund any postage costs.
Please ensure you send a legible cover note including your receipt & contact details with all returns. This will provide clarity on the reason for return of the item & speed up the returns process.
*Unfortunately, exchanges or refunds are not allowed if the Goods have been specially made to order, personalized or altered to fit. These items do however come with their applicable warranty periods.
Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, carbon rear triangle, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standard |
Rear shock | Fox Float X Factory DPS, EVOL LV, 230 x 57.5mm, custom tuned for Whyte |
Fork | Fox Float 36 Factory, 160mm travel, 44mm offset with Grip X2 damper custom tuned for Whyte, tapered steerer, 110mm x 15mm Boost, E-thru axle |
Headset | FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings |
Shifters | SRAM AXS rocker pod, right, MMX, 12 speed |
Rear derailleur | SRAM S1000 AXS Eagle, 12 speed |
Chainset | Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type |
Chain | SRAM GX T-Type, 12 speed |
Cassette | SRAM XS 1275, T-Type, 10-52T, 12 speed |
Wheelset | DT Swiss Hybrid H1900, 29" front and rear |
Hubs | DT Swiss Hybrid H1900, 110mm x 15mm Boost, six bolt DT Swiss Hybrid H1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt |
Spokes | DT Swiss Elemental |
Tyres | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
Brakes | SRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220/200mm six bolt HS2 rotors |
Handlebars | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
Grips | Whyte Enduro lock-on |
Stem | Whyte, 35mm extension, 35mm bar bore |
Saddle | Whyte Custom |
Seatpost | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
Pedals | Fibre reinforced composite platform |
Motor | Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. AXS derailleur powered off motor and featuring SmoothShift. |
Battery | Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. |
Display | Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips. |
Charger | Charger 12A (230V) |
