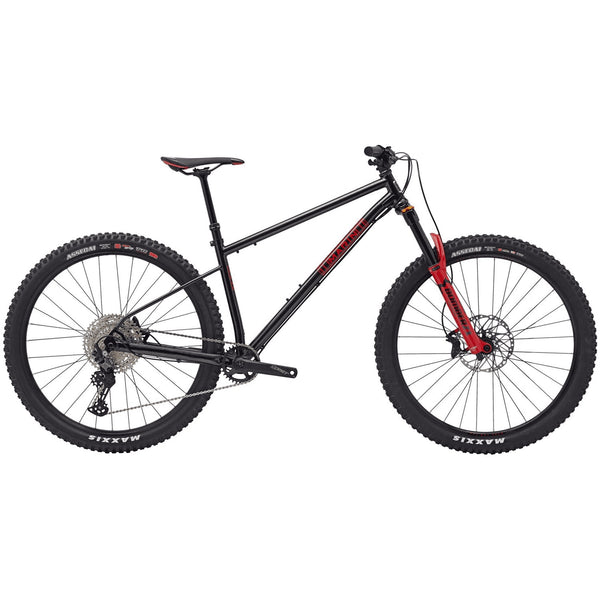

Marin El Roy 29" Hardtail Mountain Bike 2021
Marin El Roy 29" Hardtail Mountain Bike 2021
ENDURO | SLASHING BERMS | ALL TRAILS, ALL CONDITIONS
The El Roy is the ultimate aggressive steel hardtail that’ll get you to the top, and then really shine on the way down, with a spicy mix of progressive geometry and supple steel.
SERIES 3 CRMO FRAME
The El Roy is built on a stout Series 3 4130 CrMo frame with investment cast dropouts, integrated drop-in headset, external brake and hose mounts, all fully ED coated for longevity.
GEOMETRY
Gravity-oriented geometry, with a 63° headtube and 78° seattube angles, 44mm fork offset, and long reach measurements (Regular = 480mm, Grande = 510mm).
INVESTMENT CAST DROPOUTS
Custom investment cast CrMo 148x12mm Boost thru-axle drop outs provide strength and stiffness where you need it most.
TOPTUBE STORAGE MOUNTS
Bosses on the underside of the top tube give the rider the option to mount tools and other accessories in a tidy and secure fashion.
| Frame | Series 3 Double Butted and Formed CrMo tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, Post Mount Brake Mounts |
|---|---|
| Rear shock | None |
| Fork | Marzocchi Z1, 140mm Travel, EVOL Air Spring, GRIP Damper w/ Sweep Adjust, Kabolt 110 Axle, 44mm Offset |
| Headset | FSA Orbit 40 No.42 ACB |
| Shifters | Shimano Deore, M6100, 12-Speed |
| Front derailleur | None |
| Rear derailleur | Shimano Deore, 12-Speed, SGS |
| Chainset | FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing |
| Bottom bracket | Mego EXO 73mm BSA |
| Chain | KMC X-12 Silver and Black |
| Cassette | Shimano, Deore 12-Speed, 10-51T |
| Wheelset | Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible |
| Hubs | Shimano HF-MT410B, 110x15mm, Centerlock Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Tyres | Maxxis Assegai 29x2.5", MAXX GRIP, Double Down, Tubeless Compatible |
| Brakes | Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Grips | Marin Single Clamp Locking |
| Stem | Marin 3D Forged Alloy, 35mm |
| Saddle | Marin Speed Concept |
| Seatpost | X Fusion Manic, Regular = 150mm Travel, Grande = 170mm Travel |
| Pedals | None |
